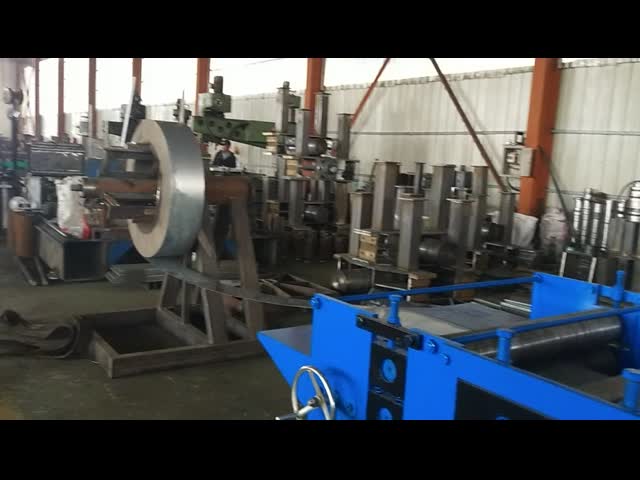

Fast Size Changing CZ Steel Frame Roll Forming Machine Hydraulic Punching Type
Advantage:
One machine can produce C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.
Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
machine Component
De-coiler------------------------------------------1set
Leveling device----------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching device----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 500mm | 600mm |
| Capacity | 5000kgs | 5000kgs-8000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |
roll forming machine
(1) Material Thickness: 1-3 mm
(2) Rollers: 12Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°
(4) Material for shaft: #45 steel after treatment
(5) Diameter of shaft: 80mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11kw
(9) Rolling Speed: 8-10 m / min
(10) Driven type: 2＂Chain
Punching device
| Item | Parameter detail |
| Frame processing | the whole levelling surface is made by drilling machine |
| Mould material | Cr12mov |
| Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
| Hole size | According to your request |
| Hole number | According to your request |
| Pressure | 20Mpa |

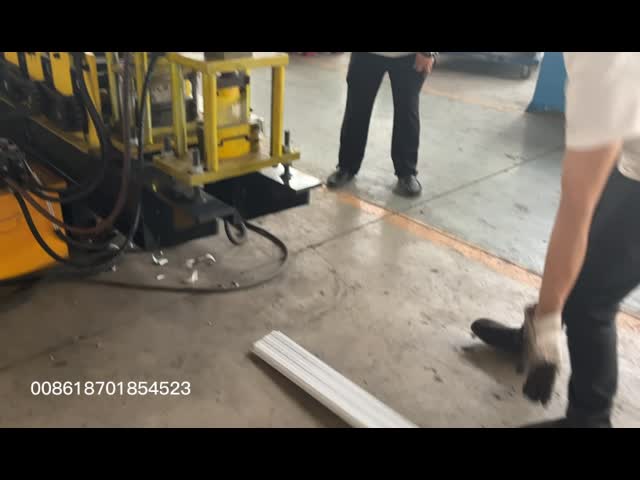

Cutting device
| Type | Mould cutting |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
| Working | Hydraulic type |
Stacker
| Type | Manual | Auto(option) |
| Length | 2pieces, length is adjustable | according to your requirement |
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system | Cooling fan |
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q:What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
